Digi Doser Di-O 2 is a dosing system to add Di-O-Clean into the drinking water system.
The system is equipped with a digital membrane pump, that doses the right amount of Di-O-Clean in the water pipe based on the pulses of the water meter.
Features:
- Throughput capacity: 15 – 2,500 l/hour
- Water pressure: 0.05 – 5 bar,
- Dosage: 20 – 1080 ppm
- Max. pump capacity: 2.7 l/hour
- Water meter pulses: 2 p/litre
- Input and output connections: PVC 40 mm – 40 mm
Technical Specifications
- Max pressure : 8 bar
- Minimum Flow rate : 15 litres per hour
- Nominal flow rate : 2,500 litres per hour
- Maximum flow rate : 3,000 litres per hour
- Maximum injections per minute : 180
- Injection per impulse : 0.25 cc at 5 bar
- Pump output : 2.7 litres per hour at 5 bar
- Working temperature : from 0 to 45 °C.
- Voltage : 230 VAC
- Power use : 16 W
- Dimension (mm) : 942 mm x (H) 500 mm x (D) 237 mm
- Weight : ± 10 kg
- Protection rating : IP 65
- In/output connections : 40 mm PVC

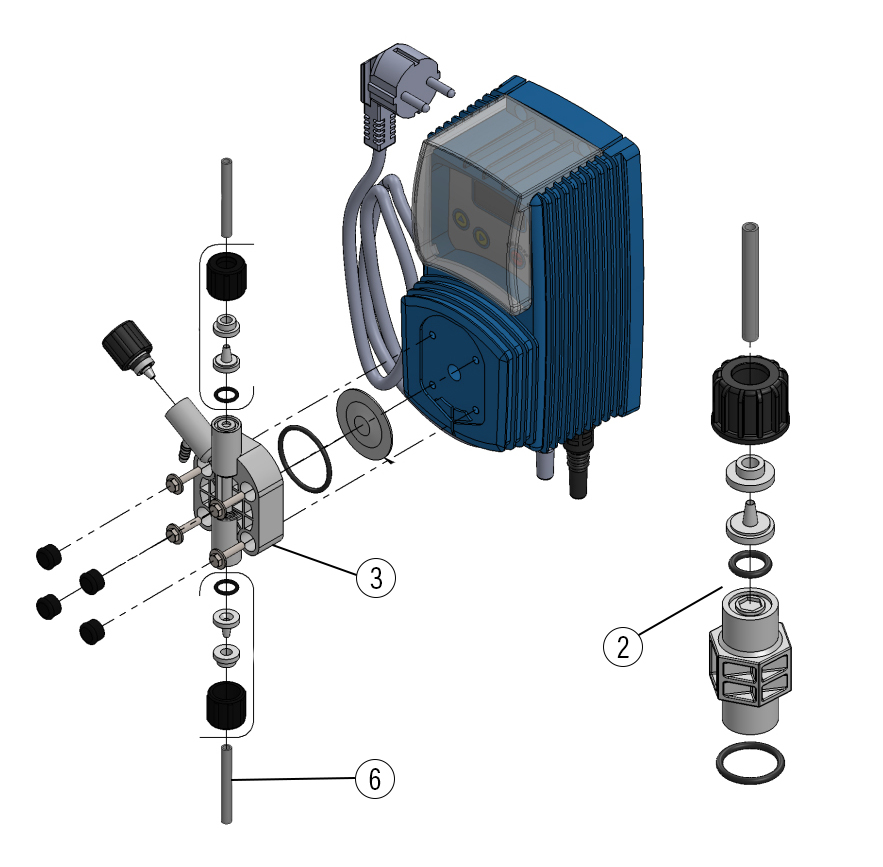

Replacement parts available
