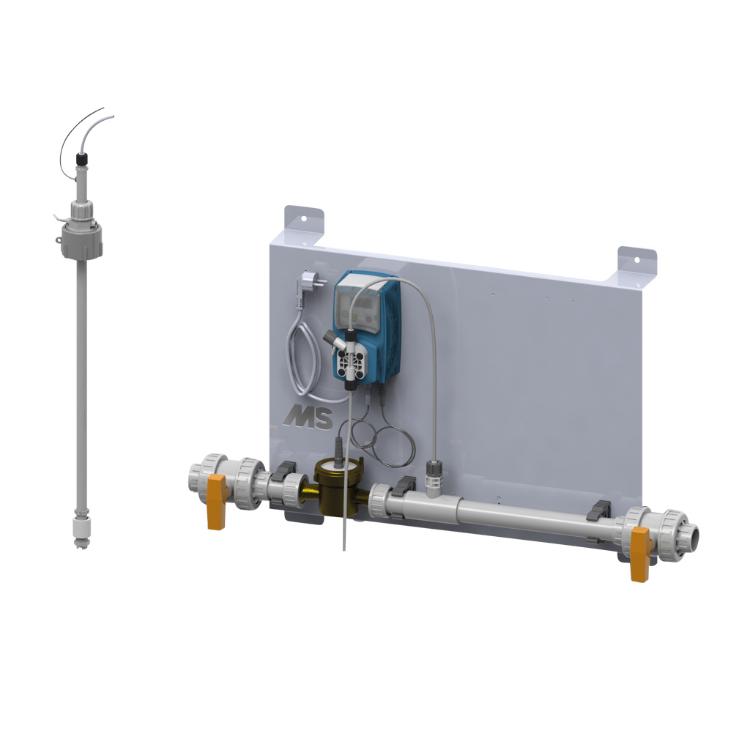

A precision dosing system designed to automatically inject Di-O-Clean into livestock drinking water systems. Using a digital membrane pump controlled by water meter pulses, it accurately adjusts the dosage according to water consumption, helping maintain effective water hygiene throughout the drinking water system.
Fully pre-assembled and easy to operate, the Digi Doser is specifically designed for precise, low-dose applications. Its chlorine dioxide-resistant components and built-in low-level warning float make it a reliable solution for livestock drinking water treatment.
- Throughput capacity: 15 – 2,500 l/hour
- Water pressure: 0.05 – 5 bar,
- Dosage: 20 – 1080 ppm
- Max. pump capacity: 2.7 l/hour
- Water meter pulses: 2 p/litre
- Input and output connections: PVC 40 mm – 40 mm
Technical:
- Max pressure : 8 bar
- Minimum Flow rate : 15 litres per hour
- Nominal flow rate : 2,500 litres per hour
- Maximum flow rate : 3,000 litres per hour
- Maximum injections per minute : 180
- Injection per impulse : 0.25 cc at 5 bar
- Pump output : 2.7 litres per hour at 5 bar
- Working temperature : from 0 to 45 °C.
- Voltage : 230 VAC
- Power use : 16 W
- Dimension (mm) : 942 mm x (H) 500 mm x (D) 237 mm
- Weight : ± 10 kg
- Protection rating : IP 65
- In/output connections : 40 mm PVC
If you need any replacement parts in the above images, please see below the list that you can contact AnQuip to discuss with you about.
- SCH8800455 - VMF Pump
- SCH8804528 - Injector Piece
- SCH8804503 - Mixo Pump Head J or K
- SCH8800286 - Suction Lance
- SCH8804515 - Water Meter
- SCH8804535 - PVDF Tube 2m
